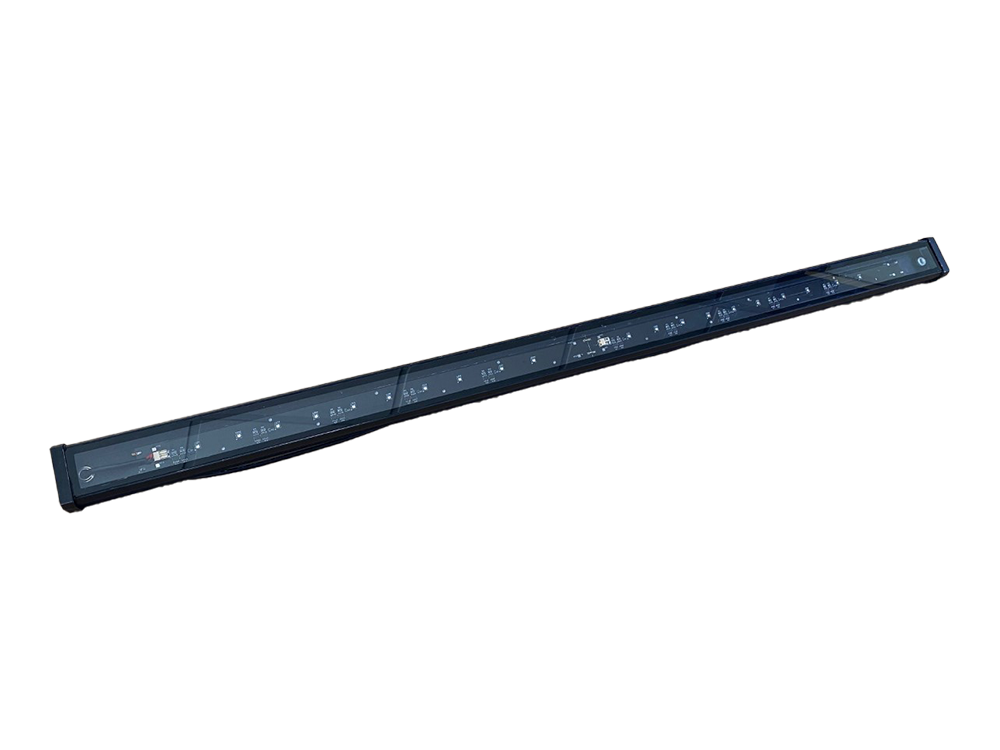

Enigma XL UVA LED
High-performance fixed mount 365nm UV LED inspection lamp to produce bright fluorescent effects over a large area. 1,015mm long and a rating of IP65, the Enigma XL is a popular choice for professional UV inspection applications including detection of cracks, leaks, hydrocarbons, clearcoats, conservation and preservation, food production and cleanliness monitoring. Conforms with RRES 90061 and Airbus AITM6-1001.
- High UVA output at 365nm
- Produces bright fluorescent effects
- Contains 20 x UVA long-life LEDs
- Conforms with RRES 90061 and Airbus AITM6-1001
Product Specification
The Enigma XL UVA LED incorporates high-performance fixed mount 365nm UV LED inspection lamp to produce bright fluorescent effects over a large area. 1,015 mm long and a rating of IP65, the Enigma XL is a popular choice for professional UV fluorescent inspection applications including detection of cracks, leaks, hydrocarbons, clearcoats, security markings and more. Full health and safety information provided.
Features & Specifications
- Power supply
- Operating manual
- 2 x hinge bracket with 180 degree fitting
- Health and safety guidance
| Max. @ 38cm | 5,000 uW/cm2 |
| Max. @ 50cm | 3,570 uW/cm2 |
| Max. @ 100cm | 1,400 uW/cm2 |
| Max. @ 150cm | 682 uW/cm2 |
- High UVA output at 365nm
- Produces bright fluorescent effects
- Contains 20 x UVA long-life LEDs
- Conforms with RRES 90061 and Airbus AITM6-1001
| UV source | 20 x UVA LEDs |
| LED lifespan | 40,000 hours |
| UV peak output | 365nm ± 5nm |
| Wattage | 66W |
| Body Material | Anodised aluminium |
| Weight | 2.0Kg |
| IP Rating | IP65 |
| Dimensions | 1015mmx55mmx55mm |
