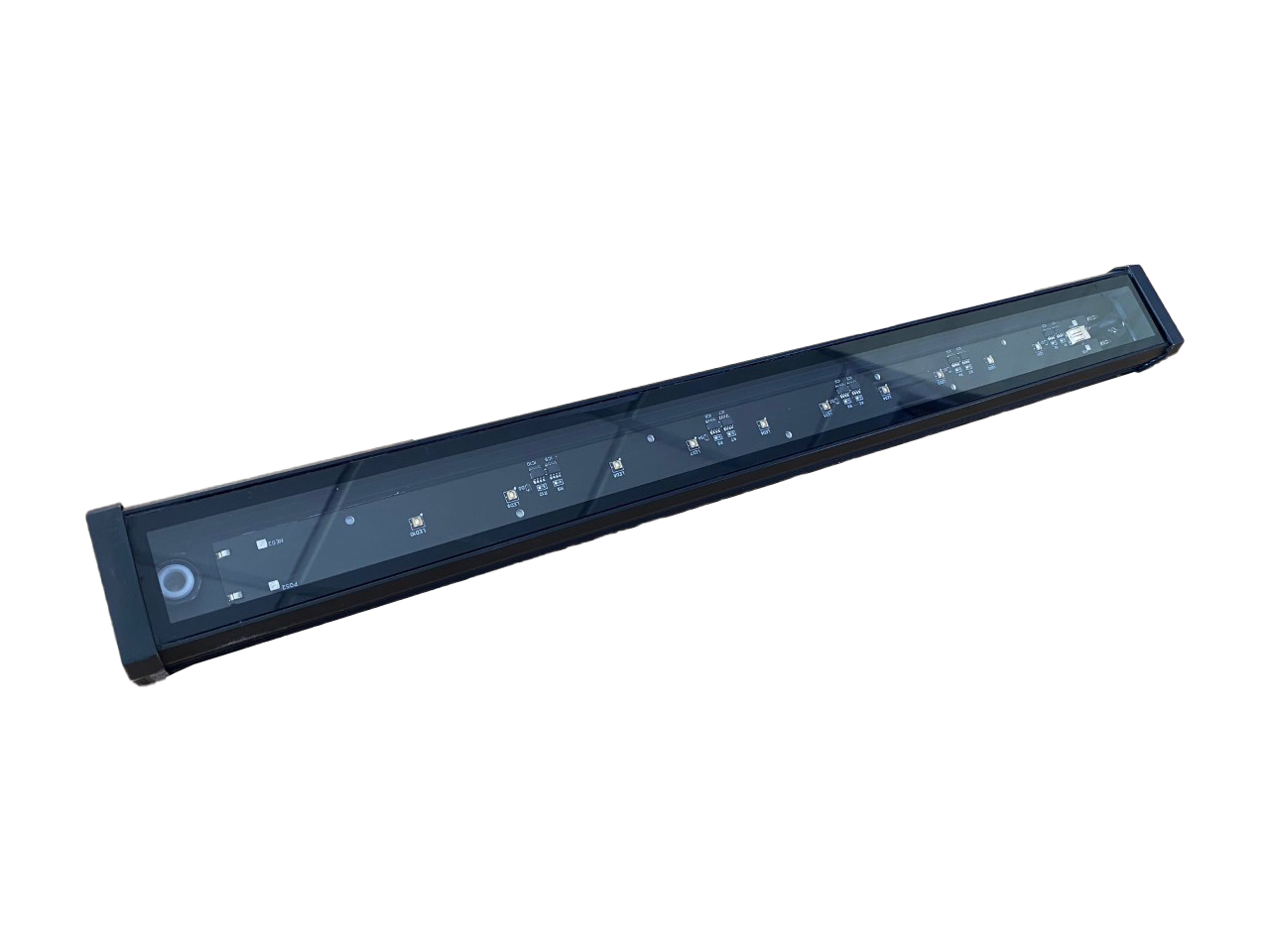

Enigma UVA LED
High-performance mounted 365nm UV LED inspection lamp designed to deliver bright fluorescent effects across a large area, allowing users to easily detect defects, leaks and other critical issues in various materials and surfaces. Ideal in industrial and commercial settings where thorough inspections are essential for quality control and safety compliance. Conforms with RRES 90061 and Airbus AITM6-1001.
- High UVA output at 365nm
- Produces bright fluorescent effects
- Contains 10 x UVA long-life LEDs
- Includes power supply and mounting bracket
- Conforms with RRES 90061 and Airbus AITM6-1001
Product Description
The Enigma UVA LED contains a high-performance fixed mount 365nm UV LED inspection lamp to produce bright fluorescent effects over a large area. 515 mm long and a rating of IP65, the Enigma is a popular choice for professional UV fluorescent inspection applications, including detection of cracks, leaks, hydrocarbons, clearcoats, security markings and more. Full health and safety information provided.
Features & Specifications
- Power supply
- Operating manual
- 2 x hinge bracket with 180 degree fitting
- Health and safety guidance
| Max. @ 38cm | 4,200 uW/cm2 |
| Max. @ 50cm | 2,660 uW/cm2 |
| Max. @ 100cm | 747 uW/cm2 |
| Max. @ 150cm | 322 uW/cm2 |
- High UVA output at 365nm
- Produces bright fluorescent effects
- Contains 10 x UVA long-life LEDs
- Conforms with RRES 90061 and Airbus AITM6-1001
| UV source | 10x UVA LEDs |
| LED lifespan | 40,000 hours |
| UV peak output | 365nm ± 5nm |
| Wattage | 33W |
| Body Material | Anodised aluminium |
| Weight | 1.1Kg |
| IP Rating | IP65 |
| Dimensions | 515mmx55mmx55mm |
